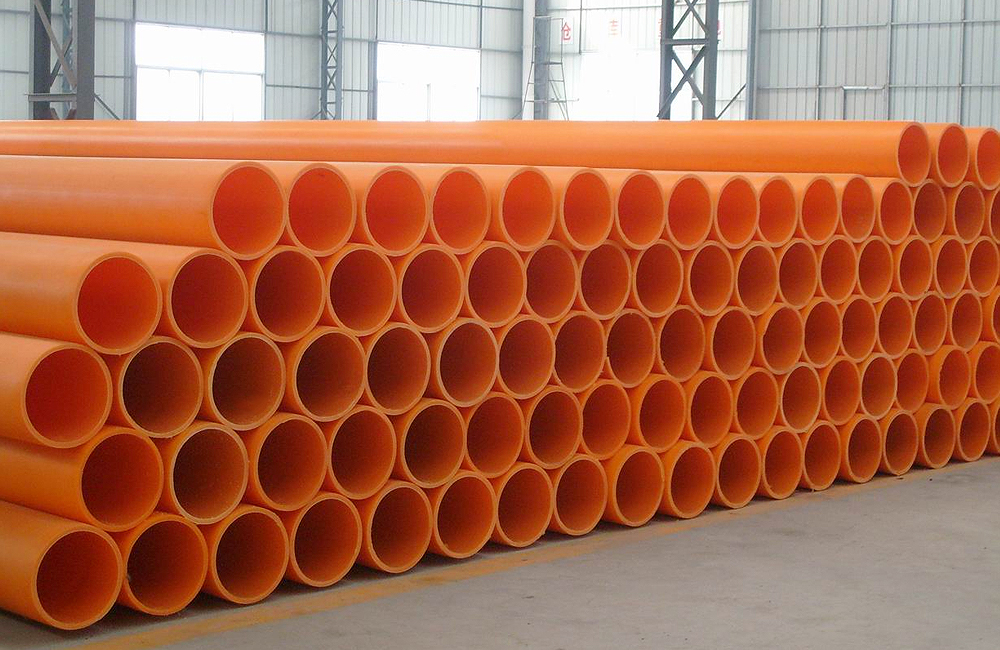

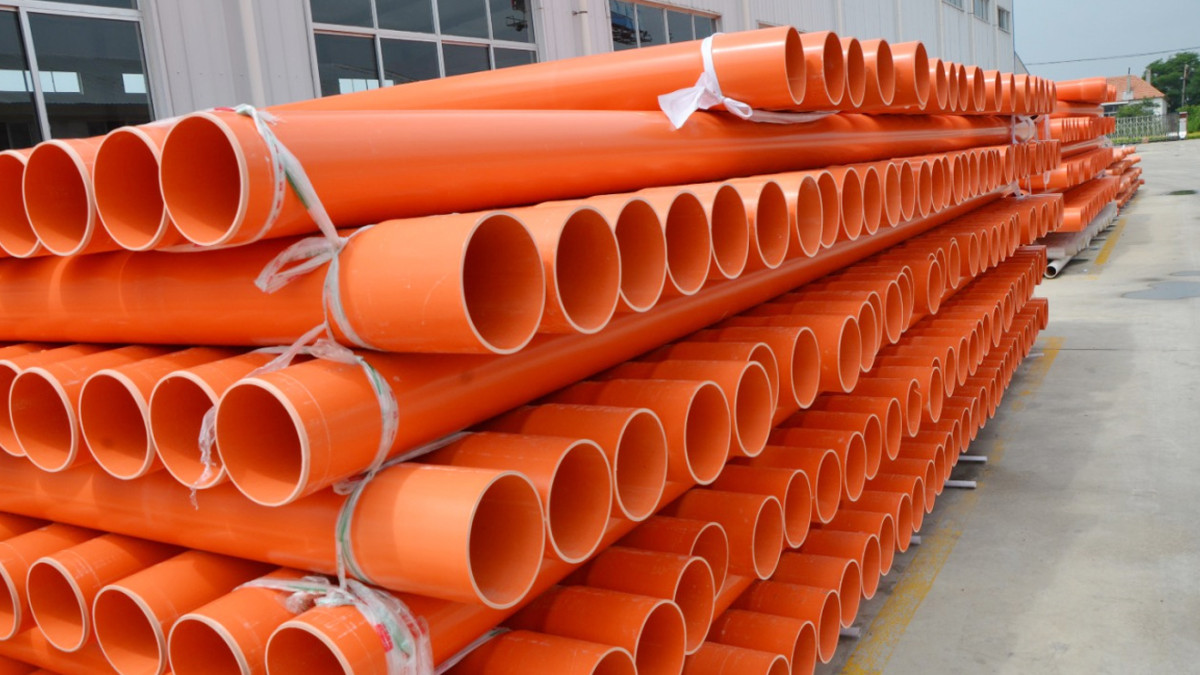

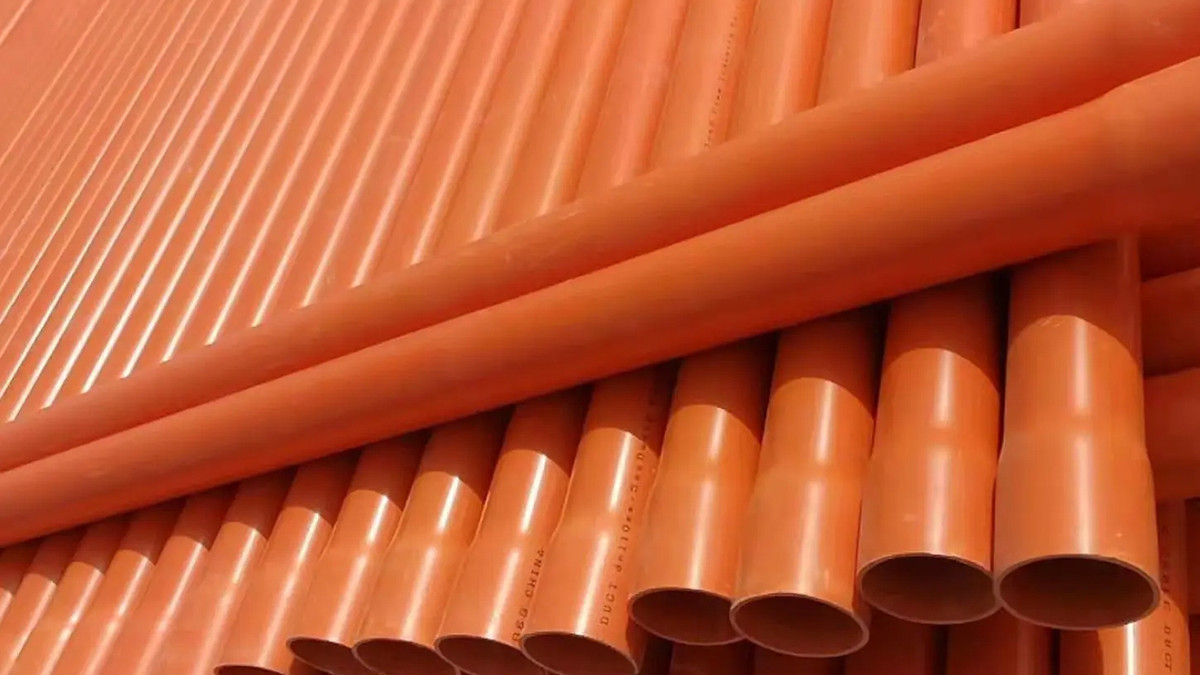

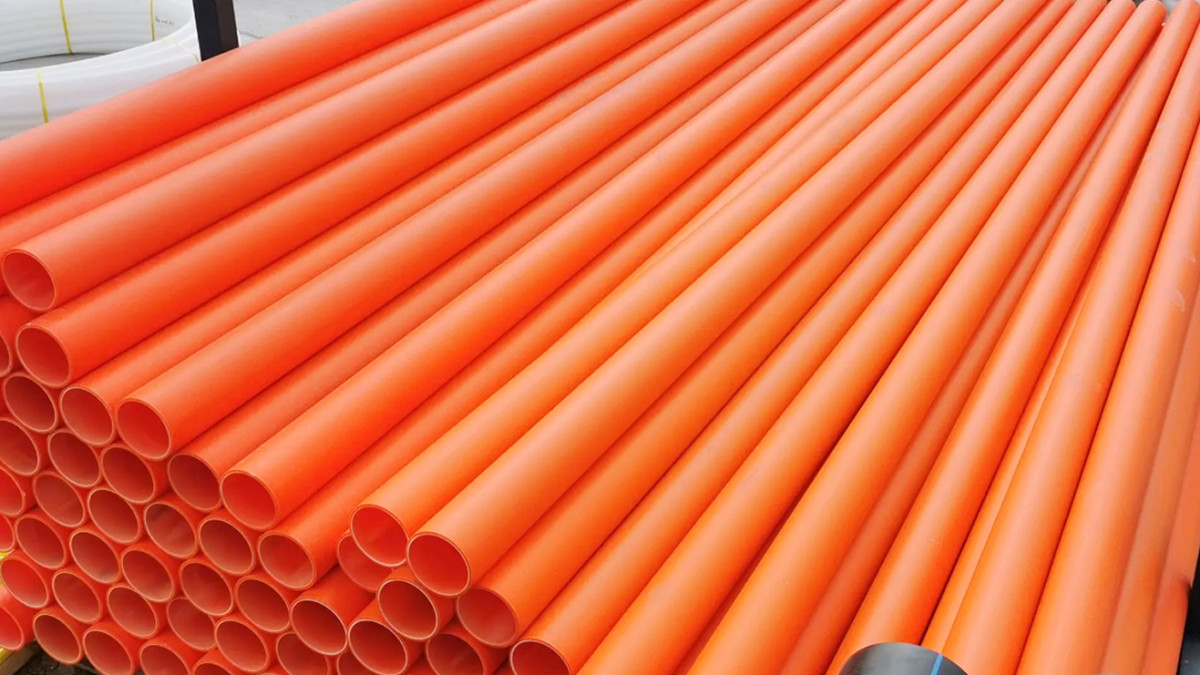

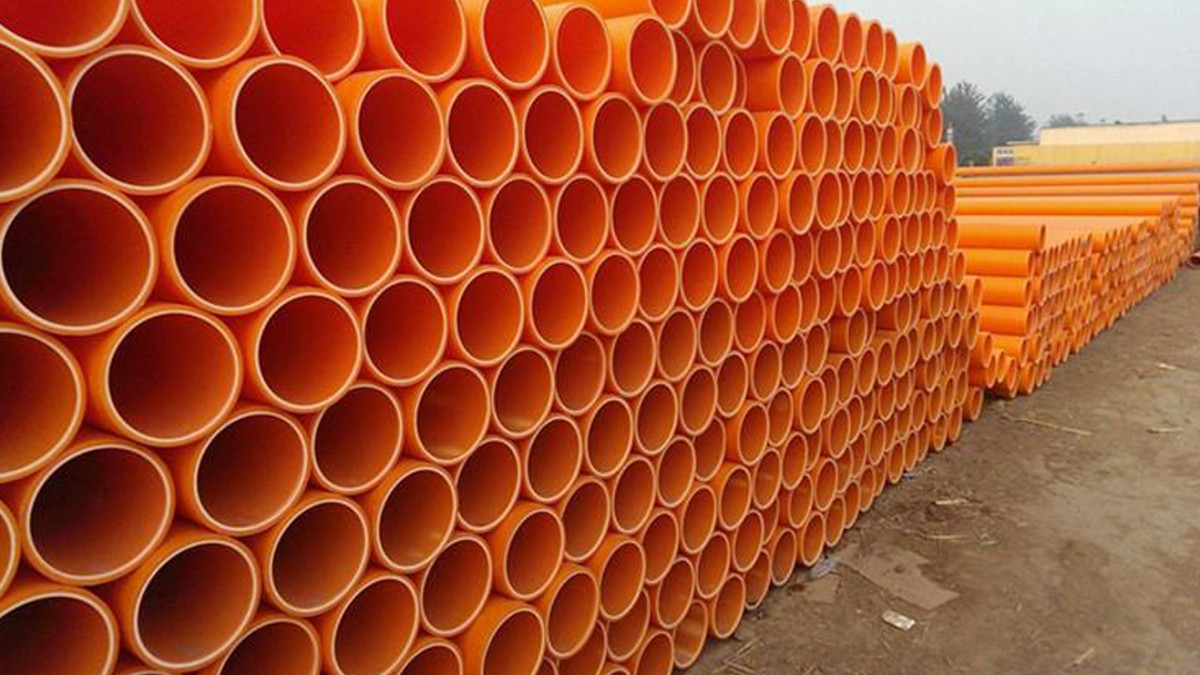

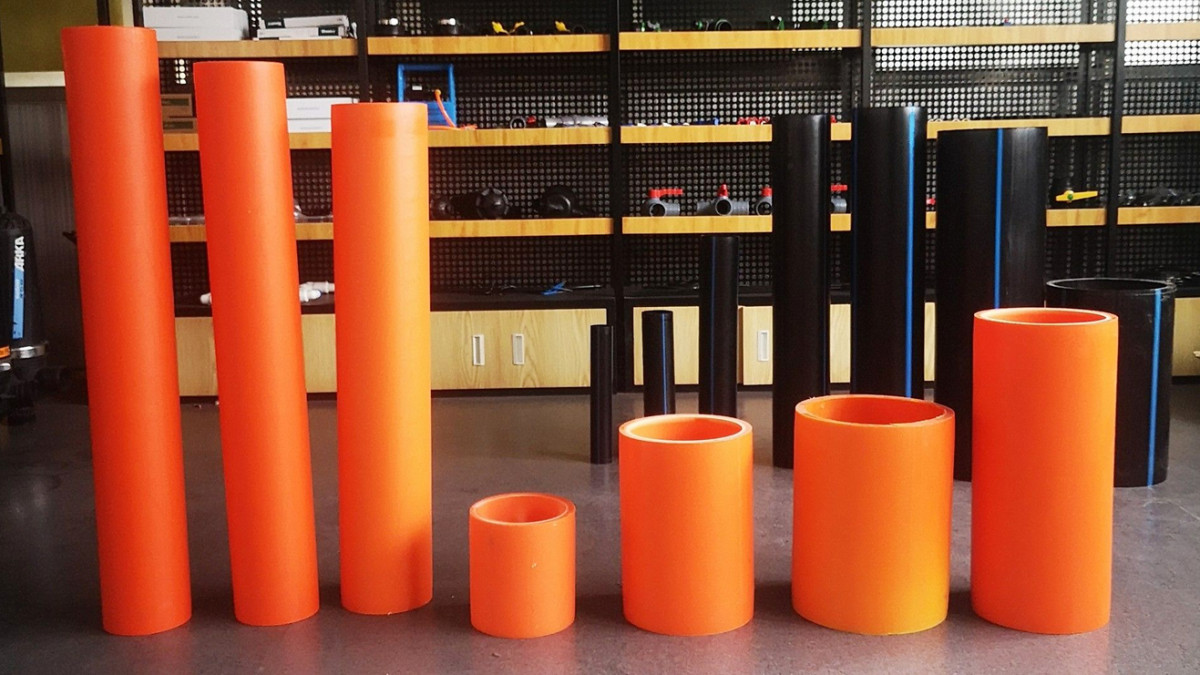

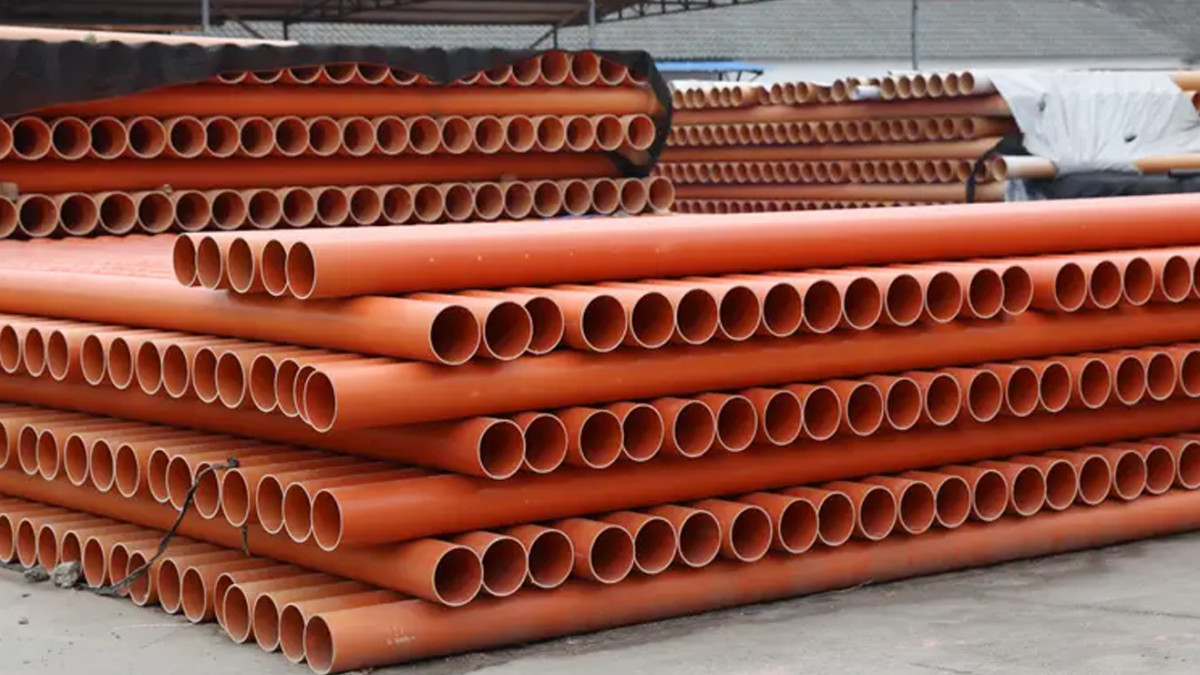

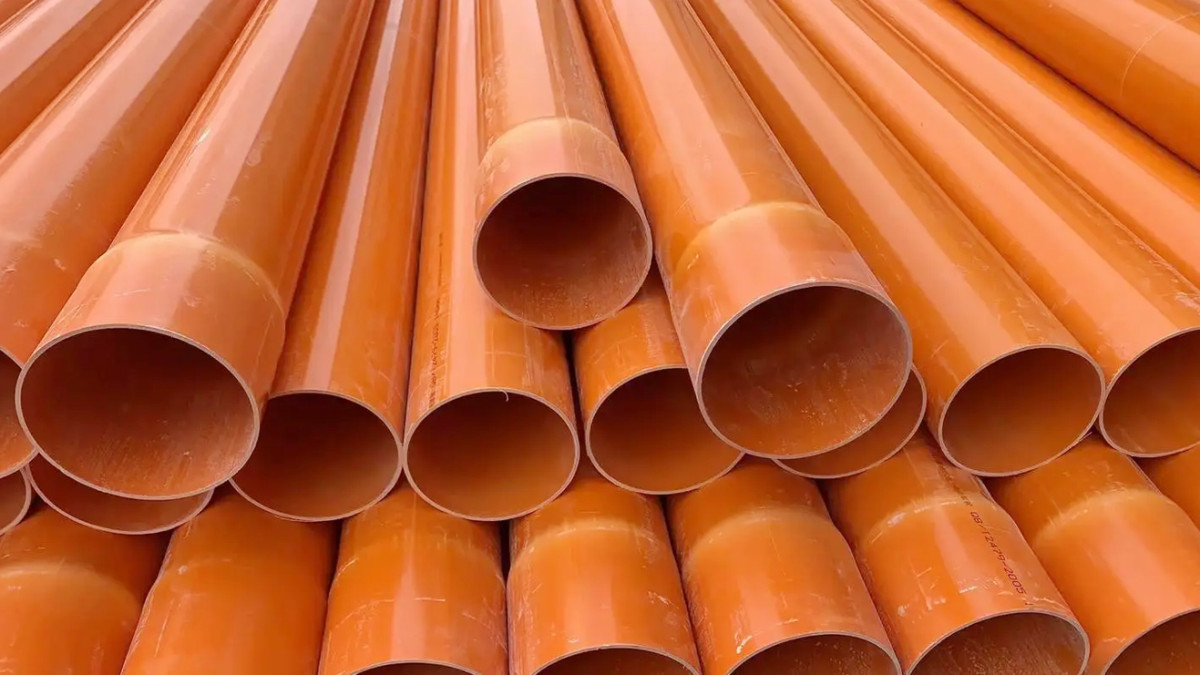

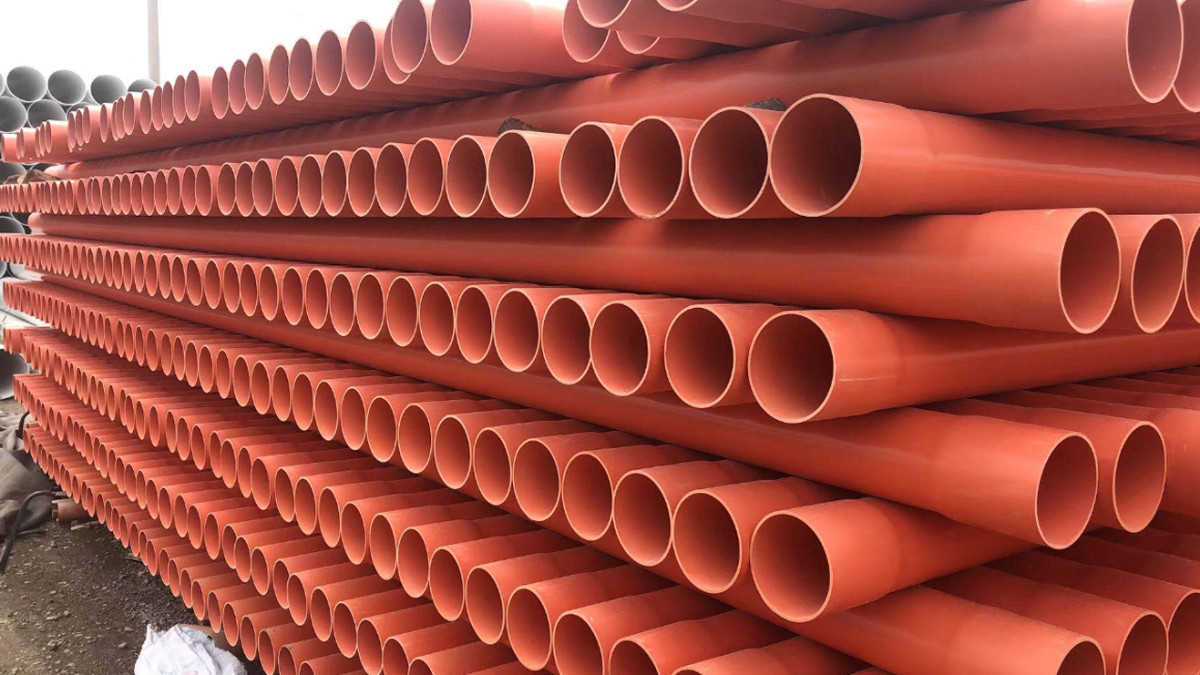

PVC DWV Pipe
PVC DWV Pipe

Application Area

1. Municipal Engineering: can be used for urban drainage and sewage pipe (pvc dwv fitting astm d2665, PVC sewage pipe)

2. Construction Engineering: Pipes for direct drainage of outdoor rainwater of buildings; pipes for sewage drainage of indoor toilets and kitchen balconies; underground drainage pipes; sewage pipes; Ventilation pipe and ventilation pipe of fresh air system. ( pvc dwv pipe and fitting astm d2665, PVC drain pipe)

3. Electrical and Telecommunication Engineering: buried protective pipes for various power cables; three-wire underground conduit (pvc dwv fitting astm d2665, PVC communication pipe,PVC insulated start sleeve)

4. Railway and highway communication: communication cable, optical cable buried through protective pipe (PVC communication pipe,PVC insulation start sleeve)

5. Industry. PVC drainage pipe is widely used in chemical industry, medicine, environmental protection and other industries. Waste water recycling pipe ( pvc dwv pipe and fitting astm d2665,PVC drain pipe)

6. Agricultural and garden projects. It is used for the supply and discharge of rural fields, vegetable greenhouses, vegetable arch greenhouses, orchards, tea gardens, gardens, green belts and forest belts, etc Water (PVC agricultural irrigation pipe)

7. Road works. PVC pipes are used as drainage pipes for Expressway and high-speed railway, and electrical sleeves (PVC) for some cables and signal wires Communication pipe, PVC insulated start sleeve, schedule 40 pvc dwv pipe and fitting astm d2665)

8. Factory and mine: PVC pipe can be used as mine ventilation, water supply and drainage pipe, sewage circulation, cable,insulation sleeve protection and communication line protection sleevePVC drain pipe, PVC drain pipe, PVC communication pipe, PVC insulation start sleeve) has good water tightness whether it is connected by bonding or rubber ring.

PVC DWV Pipe

Ask questions

Submit



















FREQUENTLY ASKED QUESTIONS

What are the common specifications of PVC pipe drainage pipes?

The conventional specifications of commonly used PVC pipe drainage pipes are as follows: nominal outer diameters are: 32mm, 40mm, 50mm, 75mm, 90mm, 110mm, 125mm, 160mm, 180, 200mm, 250mm, 315mm, 400mm, 500mm, 630mm, etc. PVC-U The length of the pipe is generally 4m or 6m, and customization is supported

How to solve the expansion and contraction problem of PVC drainage pipe?

The linear expansion coefficient of PVC drainage pipes is large, and expansion joints need to be installed during construction to solve the expansion and contraction problem. According to the calculation formula for the expansion and contraction of PVC-U drainage pipes caused by changes in ambient temperature:

△L=L·a·At

In the formula, △L-pipe expansion and contraction amount (m);

L-pipe length (mk)

a-Linear expansion coefficient, adopt 6×10-5~8X10-5-m/(m·℃);

△t-Temperature difference (℃)

What is the main use of PVC drain pipe?

Collect and remove wastewater, rainwater and sewage generated within the building. In urban infrastructure, drain pipes are used to collect drainage from roads, bridges, and other buildings. Drain pipes can also be used to vent gases, such as smoke exhaust ducts in kitchens and bathrooms.

What material is PVC drainage pipe made of?

PVC drainage pipe is a pipe material made of polyvinyl chloride resin as the main raw material. PVC pipes are easy to install, have a long service life and are simple to maintain, making them an ideal choice for modern building drainage systems.

What are the advantages of PVC drain pipes?

1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.

2. PVC drainage pipes have good aging resistance and their normal service life can reach more than 50 years.

3. The pipeline has excellent corrosion resistance to inorganic acids, alkali and salts, and is suitable for industrial sewage discharge and transportation.

4. PVC drainage pipes have a small friction coefficient, smooth water flow, are not easy to block, and require less maintenance work.

5. PVC drainage pipe material has a high oxygen index and is self-extinguishing.

6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.

7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.

BENEFITS & FEATURES

Quality product
Quality product
Competitive pricing
Competitive pricing
Customized solutions
Customized solutions
Fast delivery
Fast delivery
General Service
General Service
Environmental friendly
Environmental friendly

SPECIFICATIONS

Nominal size

Outside Diameter

Wall Thickness

Length

mm

Inch

mm

S600

S1000

mm
63257.151.92.543000
90382.552.53.73000
1104107.12.53.83000
16061604.04.73000
20082004.95.93000
250102506.27.33000
315123157.79.23000
