Drainage plastic schedule 40 pvc pipe water fittings 3 way tube connector

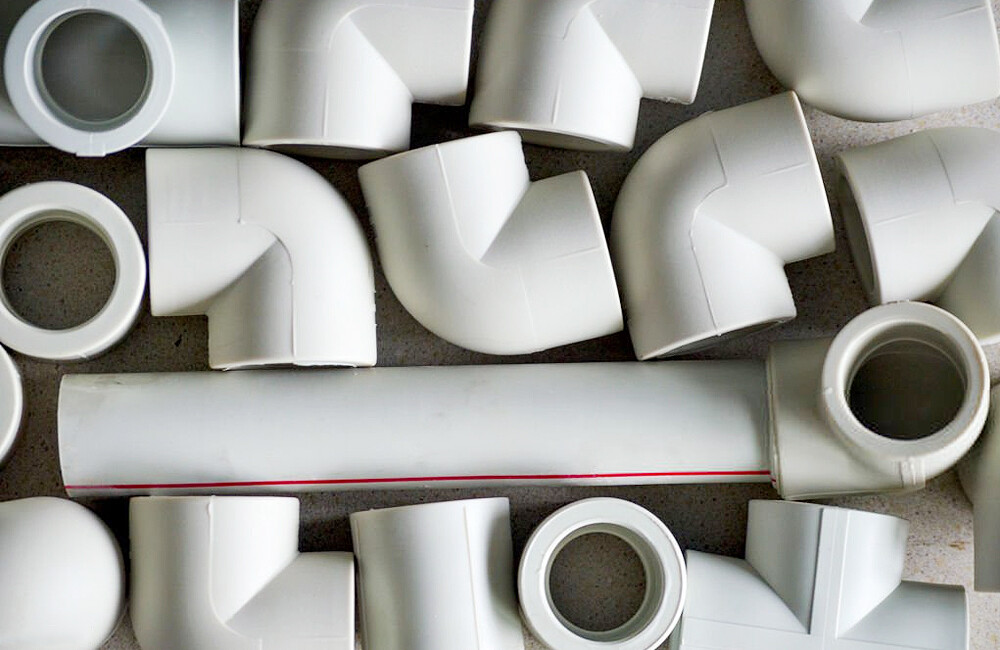

The use of three-way plastic pipe fittings is very extensive. They are mainly used in chemical industry, metallurgy, steel, machinery, electronics, light industry and textile, electric power, fire protection, construction and other fields. They are used for chemical media, hot and cold water, and water supply fluid delivery pipelines. These fittings are not only suitable for PE pipes, but also for the connection of U-PVC, steel pipes, etc., with complete specifications to meet the needs of various applications. For example, straight-through, reducing straight-through, straight tee, reducing tee, 90° elbow, threaded joint, plug, etc., the sizes include Φ20, Φ25, Φ32, Φ40, Φ50, Φ63 and other specifications. If the quantity is large, the corresponding special specifications can also be customized according to the needs1.

In addition, three-way plastic pipe fittings also have the following characteristics and application advantages:

There are locking hoops, stepped annular sealing rings and other components inside to ensure the tightness and safety of the connection. ‌

It has a wide range of operating temperatures. For example, the operating temperature range of CPVC pipes, fittings, and valves is -40℃ to 95℃, which is suitable for use in various environments. ‌

It is light, equivalent to 1/5 of steel pipes and 1/6 of copper pipes, and is easy to install and transport. ‌

It has suitable flame retardancy and is easy to install. It can be connected by bonding, flanges, threads, and welding, and is suitable for a variety of connection methods. ‌

It has low thermal conductivity, about 1/200 of steel, suitable aging resistance and UV resistance, and its service life is appropriately extended compared to other pipes.

Drainage plastic schedule 40 pvc pipe water fittings 3 way tube connector

Ask questions

FREQUENTLY ASKED QUESTIONS



What are the common specifications of PVC pipe drainage pipes?

The conventional specifications of commonly used PVC pipe drainage pipes are as follows: nominal outer diameters are: 32mm, 40mm, 50mm, 75mm, 90mm, 110mm, 125mm, 160mm, 180, 200mm, 250mm, 315mm, 400mm, 500mm, 630mm, etc. PVC-U The length of the pipe is generally 4m or 6m, and customization is supported



How to solve the expansion and contraction problem of PVC drainage pipe?

The linear expansion coefficient of PVC drainage pipes is large, and expansion joints need to be installed during construction to solve the expansion and contraction problem. According to the calculation formula for the expansion and contraction of PVC-U drainage pipes caused by changes in ambient temperature:

△L=L·a·At

In the formula, △L-pipe expansion and contraction amount (m);

L-pipe length (mk)

a-Linear expansion coefficient, adopt 6×10-5～8X10-5-m/(m·℃);

△t-Temperature difference (℃)



What is the main use of PVC drain pipe?

Collect and remove wastewater, rainwater and sewage generated within the building. In urban infrastructure, drain pipes are used to collect drainage from roads, bridges, and other buildings. Drain pipes can also be used to vent gases, such as smoke exhaust ducts in kitchens and bathrooms.



What material is PVC drainage pipe made of?

PVC drainage pipe is a pipe material made of polyvinyl chloride resin as the main raw material. PVC pipes are easy to install, have a long service life and are simple to maintain, making them an ideal choice for modern building drainage systems.



What are the advantages of PVC drain pipes?

1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.

2. PVC drainage pipes have good aging resistance and their normal service life can reach more than 50 years.

3. The pipeline has excellent corrosion resistance to inorganic acids, alkali and salts, and is suitable for industrial sewage discharge and transportation.

4. PVC drainage pipes have a small friction coefficient, smooth water flow, are not easy to block, and require less maintenance work.

5. PVC drainage pipe material has a high oxygen index and is self-extinguishing.

6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.

7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.

BENEFITS & FEATURES

Quality product

Competitive pricing

Customized solutions

Fast delivery

General Service

Environmental friendly

SPECIFICATIONS

Product Specifications
Product name	DWV 90DEG TEE(II)
Size	3”-4”
Material	PVC
Standard	ASTM D2665
Color	White or customizable
Packing	Carton
Application	Drain water
