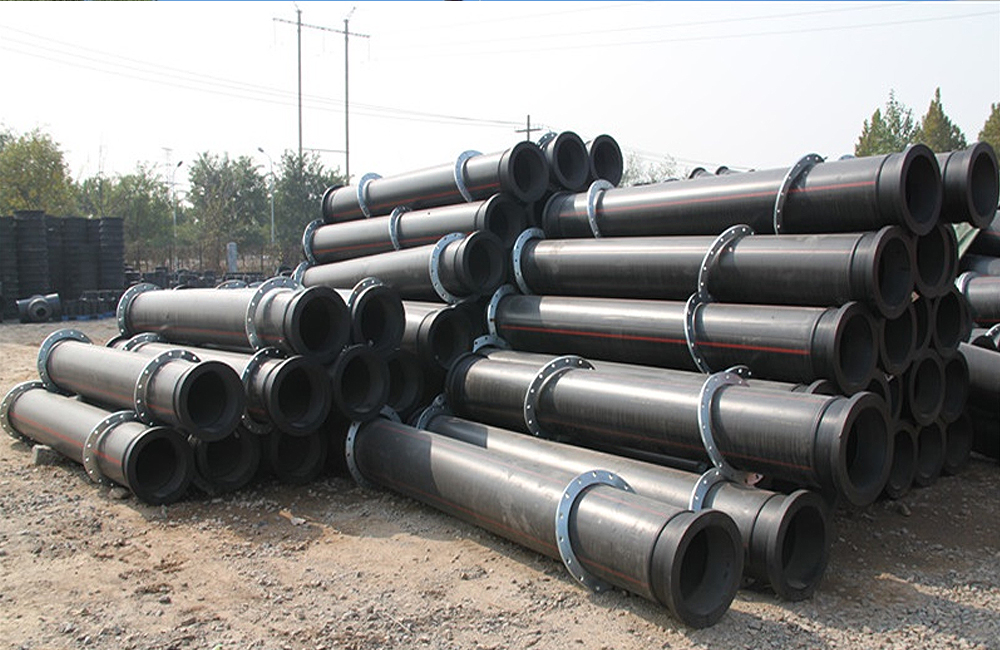

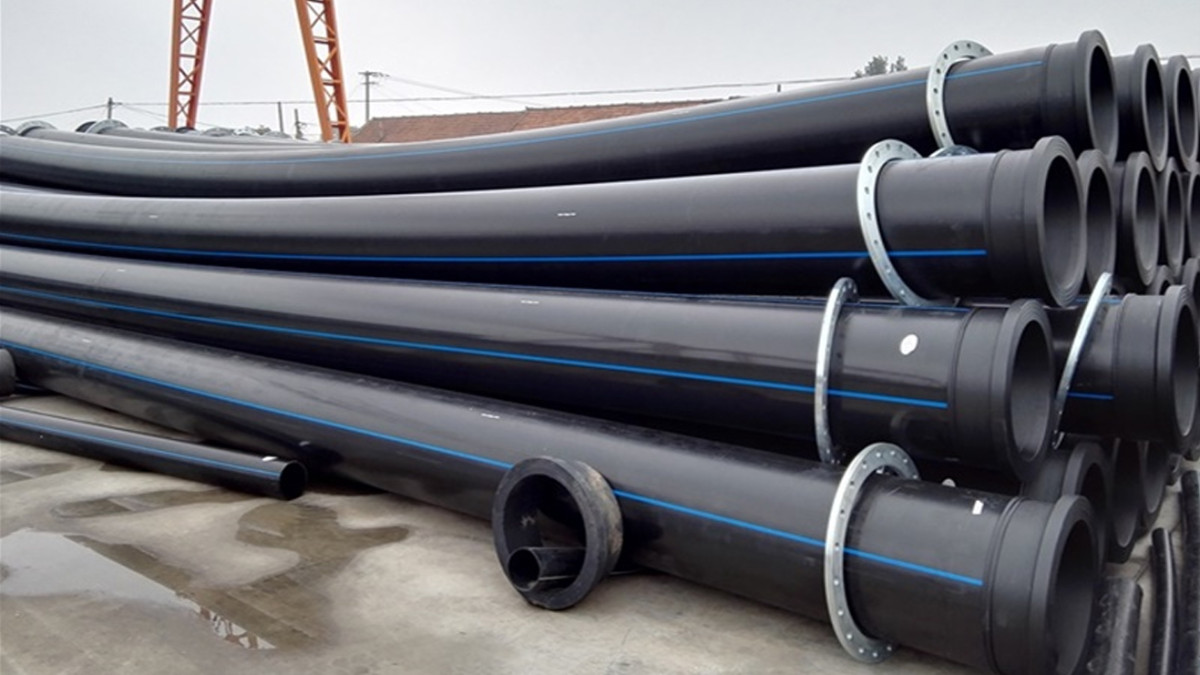

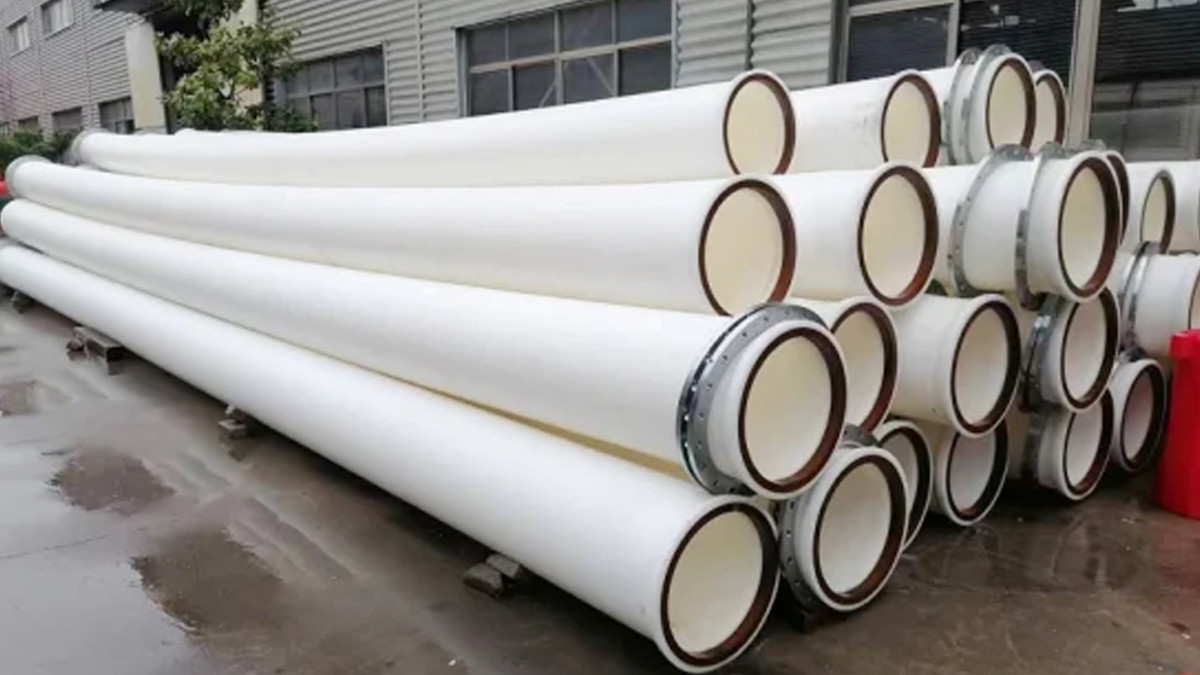

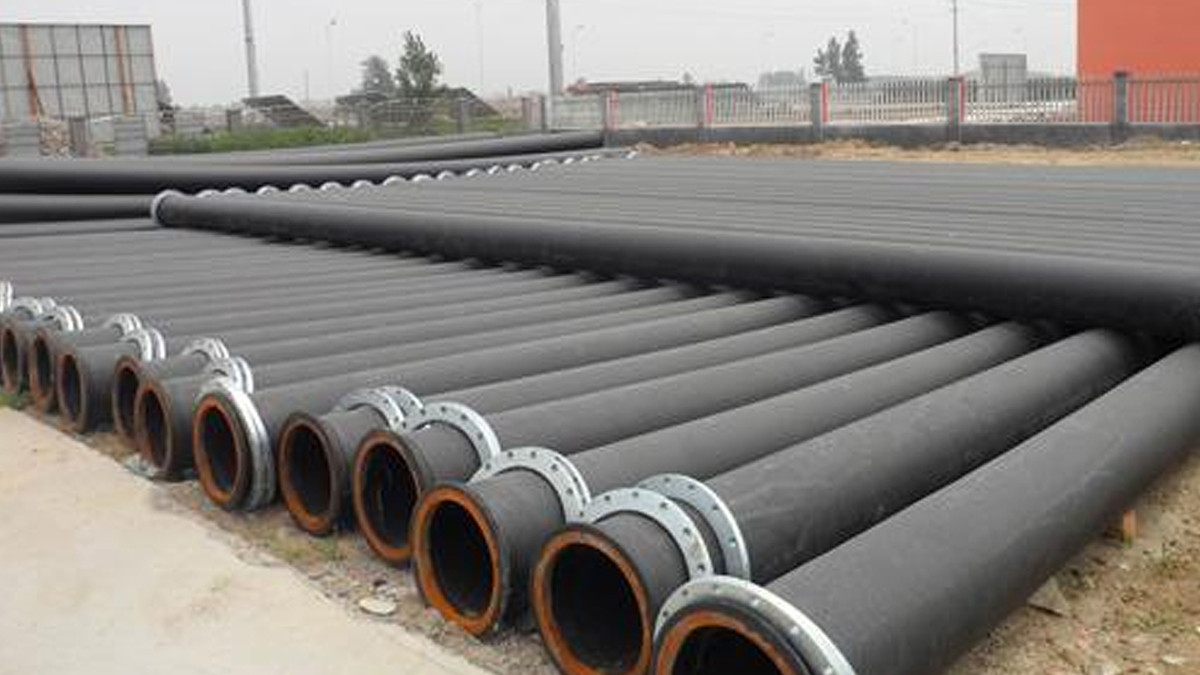

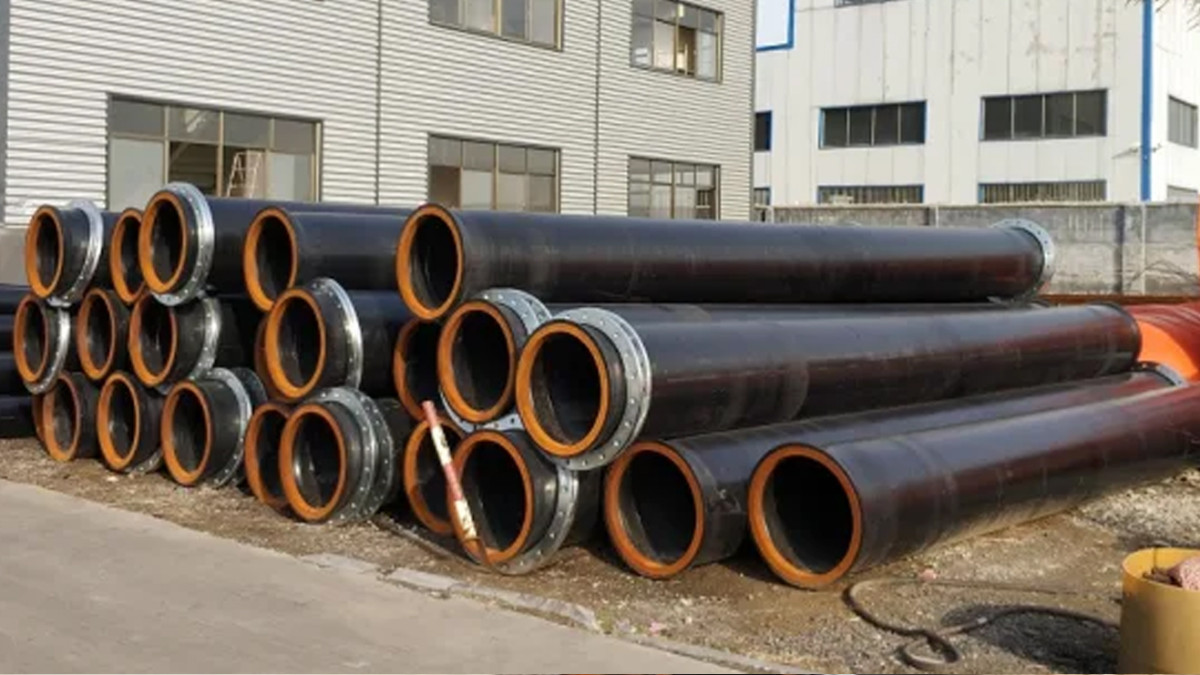

Large Diameter HDPE Plastic Dredging Pipe Plastic Pipe
High-density polyethylene pipes are made by mixing high-density polyethylene with good pressure resistance and UV-resistant materials through an extrusion process.

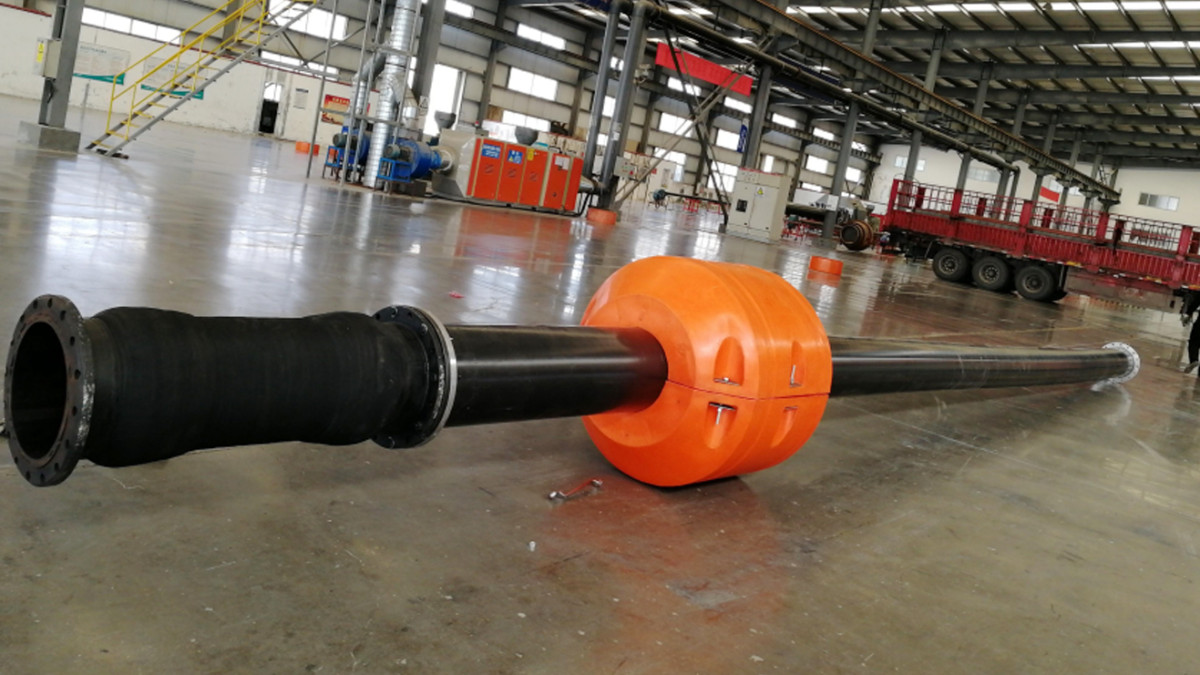

Shandong Dingrun New Materials Co., Ltd. produces HDPE pipes for dredging. Both ends of the dredging pipe are lined with steel rings to ensure that both ends will not deform during long-term installation and disassembly. Both ends are equipped with movable metal flanges, and the entire finished product is not welded. The pipes are connected with bolts through movable flanges, and there are rubber pads between the flanges.



HDPE dredging pipe HDPE dredging pipe features:

1.HDPE dredging pipe is made of high density polyethylene resin. It has high rigidity and toughness, low resistance and high mechanical strength.

2. Corrosion resistance: It has strong resistance to the erosion of various chemical substances. No electrochemical corrosion.

3. It has ultra-high wear resistance, the wear degree is 4-8 times that of steel pipes, and the service life can reach more than five years.

4. Light weight, easy to install and transport, saving construction time.

5. Total length ≤12m; working pressure and inner diameter can be customized.

Large Diameter HDPE Plastic Dredging Pipe Plastic Pipe

Ask questions

Submit











FREQUENTLY ASKED QUESTIONS

Are there any performance related tests?

We conducted comprehensive testing and compared it with other common geotubes, feel free to contact us to learn more.

What are the main uses of HDPE geotube?

Water supply and drainage system, water supply and drainage system, water supply and drainage system, mining engineering

Why choose HDPE drainage pipe as drainage pipe?

Compared with steel pipes and concrete pipes, it is more trouble-free and labor-saving; highly flexible and easy to use; and has a long service life, up to more than 50 years.

What material is HDPE pipe?

HDPE pipes are pipes made of High Density Polyethylene. It can be used to transport liquids and gases and has excellent physical properties and chemical stability.

What are the connection methods for HDPE drainage pipes?

The connection methods of HDPE drainage pipes mainly include butt welding connection, electrofusion connection, socket flexible connection, hot melt butt welding, grooved clamp connection, etc.

BENEFITS & FEATURES

Quality product
Quality product
Competitive pricing
Competitive pricing
Customized solutions
Customized solutions
Fast delivery
Fast delivery
General Service
General Service
Environmental friendly
Environmental friendly

SPECIFICATIONS

PE100

0.4MPa

0.5MPa

0.6MPa

0.8MPa

1.0MPa

1.25MPa

1.6MPa

2.0MPa

2.5MPa

OD

PN4

PN5

PN6

PN8

PN10

PN12.5

PN16

PN20

PN25

SDR41

SDR33

SDR26

SDR21

SDR17

SDR13.6

SDR11SDR9SDR7.4
Wall Thickness (en)
75--2.93.64.55.66.88.410.3
90--3.54.35.46.78.2
10.112.3
110--4.25.36.68.110.012.315.1
125--4.86.07.49.211.414.017.1
140--5.46.78.310.312.715.719.2
160--6.27.79.511.814.617.921.9
180--6.98.610.713.316.420.124.6
200--7.79.611.914.718.222.427.4
225--8.610.813.416.620.525.230.8
250--9.611.914.818.422.727.934.2
280--10.713.416.620.625.431.338.3
3157.79.712.115.018.723.228.635.243.1
3558.710.913.616.921.126.132.239.748.5
400
9.812.315.319.123.729.436.644.754.7
45011.113.817.221.526.733.140.950.361.5
50012.315.319.123.9629.736.845.455.8-
56013.717.221.426.733.2
41.250.862.5-
63015.419.324.130.037.446.357.270.3-
71017.421.827.233.942.152.264.579.3-
80019.624.530.638.147.458.872.689.3-
90022.027.634.442.953.366.281.7--
100024.530.638.247.759.372.590.2--
120029.436.745.957.267.988.2---
